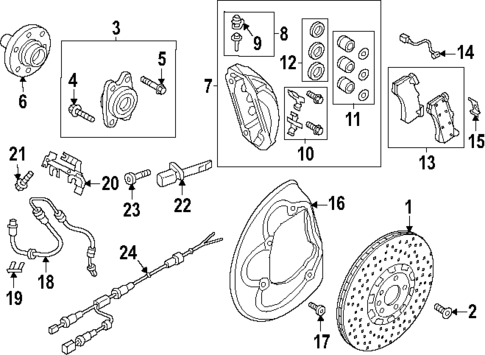

Brake Components for 2018 Audi RS5
No.
Part # / Description / Price
Price
1
MSRP $7,261.54
$5,333.60
2
MSRP $3.32
$2.99
4
Bearing Assembly Mount Bolt
Audi
Audi Positions: Right
Notes: PARTS: Part included with wheel bearing.
MSRP $7.32
$6.59
MSRP $7.32
$6.59
5
MSRP $7.40
$6.66
6
Front Hub (ONLY) Audi
Audi Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; mount bolt.
MSRP $666.66
$456.00
MSRP $666.66
$456.00
7

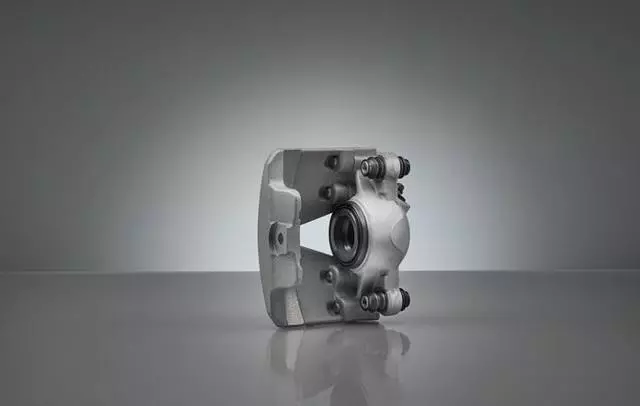

Caliper Audi
Audi Positions: Right
Description: A disc Brake caliper used for the Main operating Brakes of a vehicle, which utilizes a piston(s) to squeeze disc Brake pads against a disc Brake Rotor in order to create friction to stop a vehicle. Ceramic Composite Brakes.
Fits A5 Sportback, RS5, RS5 Sportback, S5 Sportback
400X38mm Rotor, Gray. RS5 Right. RS5. Right. 400x38mm Rotor, Gray. Ceramic Composite Brakes.
7
Caliper Audi
Audi Positions: Left
Description: A disc Brake caliper used for the Main operating Brakes of a vehicle, which utilizes a piston(s) to squeeze disc Brake pads against a disc Brake Rotor in order to create friction to stop a vehicle. Ceramic Composite Brakes.
Fits A5 Sportback, RS5, RS5 Sportback, S5 Sportback
400X38mm Rotor, Gray. RS5 Left. RS5. Left. 400x38mm Rotor, Gray. Ceramic Composite Brakes.
8
MSRP $31.98
$18.39
10
Bleeder Valve Spring Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper.
Description: 420mm brakes. 400mm, with ceramic brakes. 400x38mm rotor.
MSRP $136.67
$94.30
MSRP $136.67
$94.30
11
Bleeder Valve Seal Kit Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper.
Description: 400x38mm rotor, #1.
12
Bleeder Valve Seal Kit Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper.
Description: 400mm, with ceramic brakes. 390mm brakes. 420mm brakes. 400x38mm rotor, #2.
MSRP $61.15
$42.19
MSRP $61.15
$42.19
13

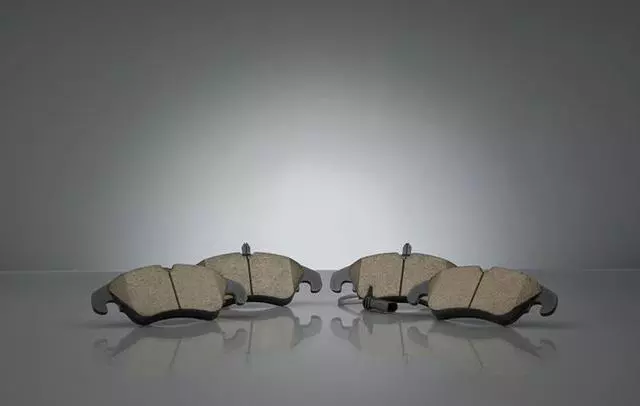

Brake Lining Audi
Audi Description: 400x38mm rotor. RS5. From 05/31/21. To 05/31/21. Without brembo.
MSRP $1,297.52
$953.03
MSRP $1,297.52
$953.03
14
Wear Indicator Audi
Audi Description: 420mm brakes. 400mm, with ceramic brakes. 400x38mm rotor.
MSRP $126.67
$87.40
MSRP $126.67
$87.40
15
MSRP $83.16
$57.37
16
Dust Shield Audi
Audi Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; mount bolt.
Description: RS5. Left. 400x38mm rotor.
16
Dust Shield Audi
Audi Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; mount bolt.
Description: RS5. Right. 400x38mm rotor.

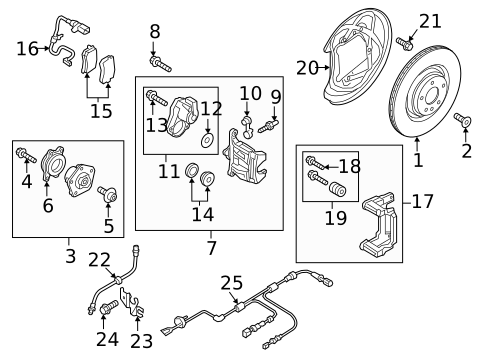

No.
Part # / Description / Price
Price
1
MSRP $189.22
$141.44
1
Disc Brake Rotor Rear Audi
Audi Positions: Left
Notes: PARTS: Order by application.
Description: 2017-21. A single Disc brake Rotor. All. Exc.For Red Painted Caliper. From 07/30/2018. From 09/03/2018. w/AWD 330X22mm, A4 w/o S-Line. w/AWD 330X22mm, S4 OR A4 w/S-Line.
, all. 2017-21, From 10/17/2016. 330X22 mm, From 09/03/2018. 330X22mm. A4 Allroad. A4 ...
MSRP $146.14
$109.24
MSRP $146.14
$109.24
3

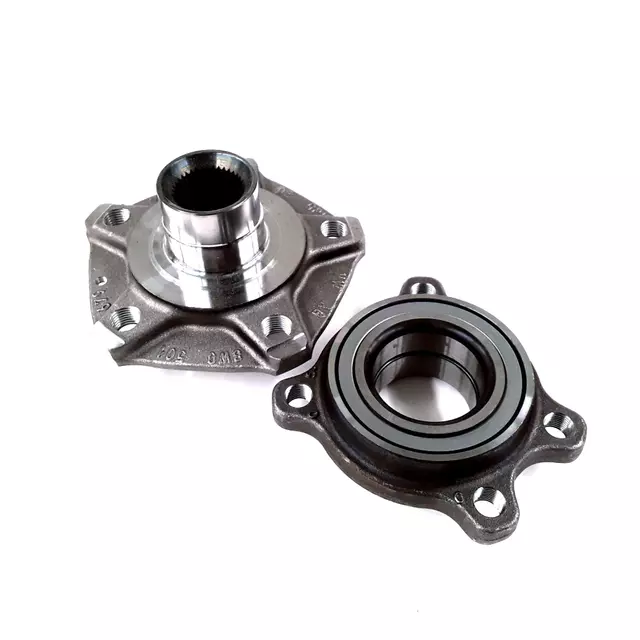

Hub & Bearing Assembly Audi
Audi Positions: Right
Notes: PARTS: Part included with knuckle. Part has related components that cannot be reused/reinstalled; bolt and axle bolt.
Description: A5. S5. 2017-20. Sportback. A4 allroad. With awd, A4. With awd, S4. Convertible. Without rs 5. With Quattro.
Supersedes to:
8W0407625J
8W0501652D
Supersedes to:
8W0407625J
8W0501652D
4
Bearing Assembly Mount Bolt Audi
Audi Positions: Left
Notes: PARTS: Part included with bearing assembly. Part cannot be reused/reinstalled.
MSRP $7.32
$6.59
MSRP $7.32
$6.59
6
Rear Wheel Bearing Audi
Audi Positions: Right
Notes: PARTS: Part included with bearing assembly.
Description: Without rs 5, 330x22 mm. A5 or S5. A4 Quattro. 2017-25, from 04/30/2018. With awd, 330x22mm, A4 without s-line. S4. A4 allroad. RS5. Convertible,.
MSRP $413.32
$282.72
MSRP $413.32
$282.72
7
Disc Brake Caliper Audi
Audi Positions: Rear left
Description: Color-Gray. Incl.Parking Brake Actuator. With rs 5, 330x22 mm, gray.
8
MSRP $12.05
$6.93
9
Bleeder Valve Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper assembly.
MSRP $31.98
$18.39
MSRP $31.98
$18.39
10
Bleeder Valve Dust Cap Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper assembly.
MSRP $12.28
$7.06
MSRP $12.28
$7.06
11
Adjust Motor Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper assembly.
MSRP $1,066.16
$783.09
MSRP $1,066.16
$783.09
12
Adjust Motor O-Ring Audi
Audi Positions: Right
Notes: PARTS: Part included with adjust motor.
MSRP $11.47
$6.60
MSRP $11.47
$6.60
13
Adjust Motor Screw Audi
Audi Positions: Left
Notes: PARTS: Part included with adjust motor.
MSRP $4.16
$3.74
MSRP $4.16
$3.74
14
Seal Kit Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper assembly.
MSRP $75.01
$51.75
MSRP $75.01
$51.75
15

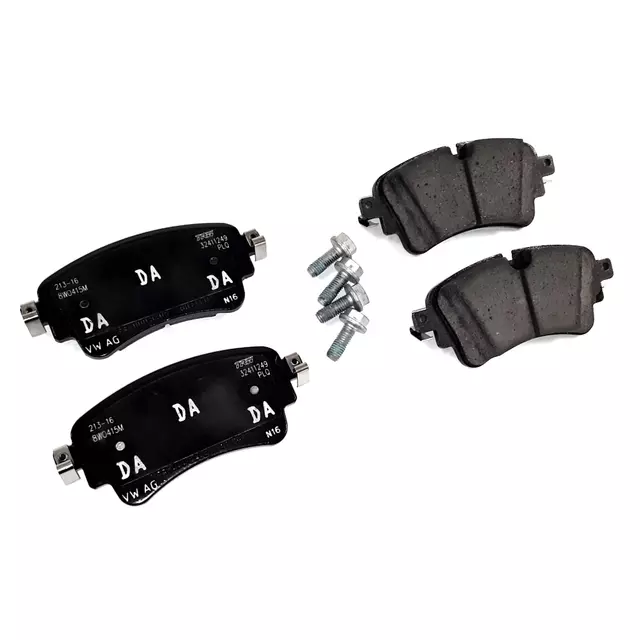

Disc Brake Pad Set Rear Audi
Audi Notes: PARTS: Order by application.
Description: Without rs 5, 330x22 mm, with code 1kj. A4. 330mm. Convertible, with brake code 1kj. To 11/25/2019. A5 or S5, with code 1kj.
15
Brake Pads Rear Audi
Audi Notes: PARTS: Order by application.
Description: Without awd, 330x22mm. RS5. Without brake code 1kj. To 11/25/2019. S4. SQ5. A5 or S5, without code 1kj. With rs 5, 330x22 mm.
17
Caliper Mount Audi
Audi Positions: Rear right
Description: With awd, 330x22mm, A4 without s-line, from 11/25/2019, black. For Black Painted Caliper. Incl.Disc Brake Caliper Guide Pin. Coupe, A5 or S5, black. Convertible, black. With rs 5, 330x22 mm, black.
17
Caliper Mount Audi
Audi Positions: Rear left
Description: With awd, 330x22mm, A4 without s-line, from 11/25/2019, black. For Black Painted Caliper. Incl.Disc Brake Caliper Guide Pin. Coupe, A5 or S5, black. Convertible, black. With rs 5, 330x22 mm, black.
18
Disc Brake Caliper Pin Bolt Audi
Audi Positions: Right
Notes: PARTS: Part included with caliper mount.
MSRP $7.50
$6.75
MSRP $7.50
$6.75
20
Splash Shield Audi
Audi Positions: Right
Description: Right. A5 or S5. With awd, 330x22mm, A4 without s-line. 2017-25. A4 Quattro. A4 allroad. S4. RS5. Convertible,. With rs 5, 330x22 mm.
21
Hexagon socket flat head bolt Audi
Audi Positions: Right
Description: Hexagon socket flat head bolt
MSRP $0.82
$0.74
MSRP $0.82
$0.74
22
Brake Hose Audi
Audi Positions: Right
Description: A5 or S5. S4. RS5. Convertible,. With awd, 300x12mm. With awd, 330x22mm, A4 without s-line. With rs 5, 330x22 mm.
MSRP $128.34
$88.55
MSRP $128.34
$88.55
23
Side Plate Seal Audi
Audi Positions: Right
Description: Coupe,. RS5. With rs 5, 330x22 mm.
MSRP $40.38
$23.22
MSRP $40.38
$23.22
24
Bracket Bolt Audi
Audi Positions: Left
Description: Convertible, m6x20. 4.0L, primary. Coupe, A5 or S5. 1.4L. RS5. 3.2L. With rs 5, 330x22 mm.
MSRP $3.38
$3.04
MSRP $3.38
$3.04
25
ABS Sensor Wire Audi
Audi Positions: Right
Description: 2017-25. With awd, 330x22mm, S4 or A4 with s-line. A4 allroad. Right. Convertible,. With awd, 300x12mm. Coupe, A5 or S5. With awd, 330x22mm, A4 without s-line. RS5. With rs 5, 330x22 mm.
MSRP $256.91
$192.05
MSRP $256.91
$192.05
25
ABS Sensor Wire Audi
Audi Positions: Left
Description: With awd, 330x22mm, S4 or A4 with s-line. 2017-25. A4 allroad. Left. Convertible,. Coupe, A5 or S5. With awd, 330x22mm, A4 without s-line. RS5. With rs 5, 330x22 mm.
MSRP $193.84
$144.90
MSRP $193.84
$144.90
