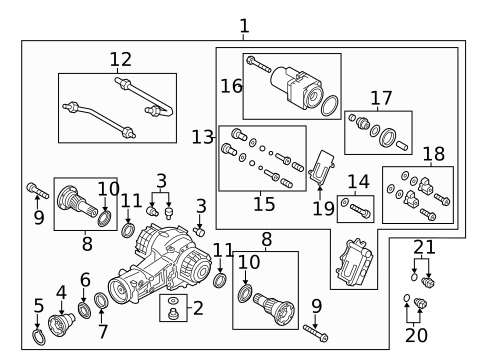

Axle & Differential for 2013 Audi RS5

1

Differential Assembly

0BF-500-044

Audi

Notes: PARTS: Part has components that cannot be reused/reinstalled; bolts, seal, plugs, ring and circlip.

Description: Rs 5.

View Details

2

Differential Assembly Front Bolt

N-902-818-02

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

Description: Code mkl or mkv. With code mkv or mzw. With code mkv or mku. Convertible, 3.0L, with torque vectoring. Coupe, 2.0L. A7, 2.0L. S7, without torque vectoring. Convertible, with awd, 3.0L, with code mkx.

MSRP $3.06

$2.75

MSRP $3.06

$2.75

3

Bleeder Valve

017-525-093

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

MSRP $27.23

$15.66

MSRP $27.23

$15.66

4

AR525389F - Suspension: Flange for Audi: A4, A4 Quattro, A5, A5 Quattro, A6, A6 Quattro, A7 Quattro, A8 Quattro, allroad, Q5, RS5, RS7, S4, S5, S6, S7, S8, SQ5 Image

Companion Flange

0AR-525-389-F

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

MSRP $523.33

$357.96

MSRP $523.33

$357.96

5

Flange Retainer Ring

0AR-598-656-A

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

Description: Code kcc or npr. With code mkv or mku. 2008-10. 4.2L. 2.0L code kll, npr. Coupe, 2.0L, 2012-17. Convertible, with awd, 3.0L, with code mkx. With awd 2.0L without code kbu. With awd without sport differential. Flange,retainer ring.

MSRP $17.94

$10.32

MSRP $17.94

$10.32

6

AR525375A - Suspension: Flange Ring for Audi: A4 Quattro, A5, A5 Quattro, A6, A6 Quattro, A7 Quattro, A8 Quattro, allroad, Q5, RS5, RS7, S4, S5, S6, S7, S8, SQ5 Image

Differential Drive Pinion Oil Deflector

0AR-525-375-A

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

MSRP $9.79

$8.81

MSRP $9.79

$8.81

7

D2598078 - Suspension: Flange Seal for Audi: A4, A4 allroad, A4 Quattro, A5 Quattro, A5 Sportback, A6, A6 allroad, A6 Quattro, A7 Quattro, A7 Sportback, A8 Quattro, Q5, Q5 PHEV, Q5 Sportback, Q7, Q8, RS5, RS5 Sportback, RS6 Avant, RS7, S4, S5, S5 Sportback, S6, S7, S7 Sportback, S8, SQ5, SQ5 Sportback Image

Pinion Seal

0D2-598-078

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

MSRP $163.15

$112.57

MSRP $163.15

$112.57

8

Stub Shaft

0D3-598-072

Audi

Positions: Right

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

MSRP $634.65

$434.10

MSRP $634.65

$434.10

8

Stub Shaft

0D3-598-071

Audi

Positions: Left

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

View Details

9

Stub Shaft Bolt

003-507-325

Audi

Positions: Left

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

Description: With code mkv or mzw. With code mkv or mku. With awd with sport differential. 3.0L.

MSRP $19.49

$11.20

MSRP $19.49

$11.20

10

BF525375 - Suspension: Stub Shaft Ring for Audi: A6, A6 Quattro, A7 Quattro, A8 Quattro, RS Q8, RS5, RS6 Avant, RS7, RS7 Sportback, S5, S6, S7, S7 Sportback, S8, SQ7, SQ8 Image

Stub Shaft Seal

0BF-525-375

Audi

Positions: Left

Notes: PARTS: Part included with stub shaft.

Description: Code mkl or mkv. With code mkv or mzw. With code mkv or mku. A8 Quattro. S8. Rs 5. With awd with sport differential. Protector. 3.0L.

MSRP $29.78

$17.12

MSRP $29.78

$17.12

11

Seal

02D-525-596-F

Audi

Positions: Left

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

MSRP $116.65

$80.49

MSRP $116.65

$80.49

12

Tube Assembly

0BF-598-077

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

Description: With awd, with sport differential. Code mkl or mkv, code mkv. With code mkv or mzw. With code mkv or mku. S7, with torque vectoring. With torque vectoring, tubing. 3.0L.

MSRP $250.00

$172.50

MSRP $250.00

$172.50

13

Actuator Assembly

0BF-598-074

Audi

Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.

Description: With awd, with sport differential. Code mkl or mkv. Torque vectoring actuator. A7, S7, RS7. With code mkv or mku. S6. 3.0L.

View Details

14

Hardware Kit

0BF-598-078

Audi

Notes: PARTS: Part included with actuator assembly.

Description: With code mkv or mku. 3.0L.

MSRP $33.18

$19.08

MSRP $33.18

$19.08

15

Valve Assembly

0BF-598-075

Audi

Notes: PARTS: Part included with actuator assembly.

Description: With awd, with sport differential, valve. Code mkl or mkv. With code mkv or mku. 3.0L.

View Details

16

BF598080 - Suspension: Pump for Audi: A6, A6 Quattro, A7 Quattro, A8 Quattro, RS Q8, RS5, RS6 Avant, RS7, S4, S5, S6, S7, S8, SQ5, SQ5 Sportback, SQ7, SQ8 Image

Actuator Repair Kit

0BF-598-080

Audi

Notes: PARTS: Part included with actuator assembly.

Description: Code mkl or mkv. With code mkv or mzw. With code mkv or mku. With torque vectoring, motor. 3.0L.

MSRP $792.31

$587.10

MSRP $792.31

$587.10

17

Repair Kit

0BF-598-076

Audi

Notes: PARTS: Part included with actuator assembly.

Description: With awd, with sport differential, pump. Code mkl or mkv. With code mkv or mzw. With code mkv or mku. 3.0L.

View Details

18

Solenoid Valve

0BF-598-079

Audi

Notes: PARTS: Part included with actuator assembly.

Description: With awd, with sport differential. Code mkl or mkv. With code mkv or mzw. With code mkv or mku. With torque vectoring, solenoid. 3.0L.

MSRP $454.99

$311.22

MSRP $454.99

$311.22

19
