Rear Suspension/Shocks & Components for 2012 Audi TT Quattro

Select Shocks & Components Part

2012 Audi TT Quattro

Change vehicle

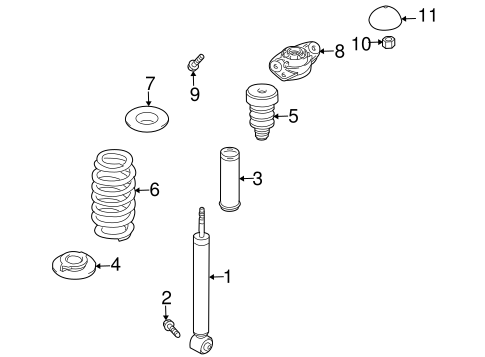

Rear Suspension/Shocks & Components for 2012 Audi TT Quattro #1
6
No. Part # Part # / Description List Price Price
1 8J0-513-025-E 8J0-513-025-E / Shock Absorber 2

Shock, LEFT

W/ AWD, W/ RIDE CONTROL SUSPENSION, TTS

$691.67 $473.10
1 8J0-513-025-E 8J0-513-025-E / Shock Absorber 2

Shock, RIGHT

W/ AWD, W/ RIDE CONTROL SUSPENSION, TTS

$691.67 $473.10
1 8J0-513-029-F 8J0-513-029-F / Shock Absorber

Shock, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ S-LINE PKG

$243.33 $166.44
1 8J0-513-029-F 8J0-513-029-F / Shock Absorber

Shock, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ S-LINE PKG

$243.33 $166.44
1 8J0-513-029-S 8J0-513-029-S / Shock Absorber 2

Shock, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O S-LINE PKG

$243.33 $166.44
1 8J0-513-029-S 8J0-513-029-S / Shock Absorber 2

Shock, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O S-LINE PKG

$243.33 $166.44
2 N-910-662-01 N-910-662-01 / Shock Mount Bolt

Shock Bolt, LEFT

W/ AWD

$6.88 $3.92
2 N-910-662-01 N-910-662-01 / Shock Mount Bolt

Shock Bolt, RIGHT

W/ AWD

$6.88 $3.92
3 3C0-513-425 3C0-513-425 / Dust Shield

Protector, LEFT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$10.78 $6.14
3 3C0-513-425 3C0-513-425 / Dust Shield

Protector, RIGHT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$10.78 $6.14
3 8E0-512-137-E 8E0-512-137-E / Boot

Protector, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$13.40 $7.64
3 8E0-512-137-E 8E0-512-137-E / Boot

Protector, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$13.40 $7.64
4 1K0-512-297-D 1K0-512-297-D / Lower Seat

Lower Seat, LEFT

W/ AWD

$17.20 $9.80
4 1K0-512-297-D 1K0-512-297-D / Lower Seat

Lower Seat, RIGHT

W/ AWD

$17.20 $9.80
5 8J0-511-353 8J0-511-353 / Strut Bumper

Bumper, LEFT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$32.40 $18.47
5 8J0-511-353 8J0-511-353 / Strut Bumper

Bumper, RIGHT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$32.40 $18.47
5 8J0-511-353-F 8J0-511-353-F / Bumper

Bumper, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ SPORT SUSPENSION

$32.40 $18.47
5 8J0-511-353-F 8J0-511-353-F / Bumper

Bumper, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ SPORT SUSPENSION

$32.40 $18.47
5 8J0-511-353-G 8J0-511-353-G / Bumper

Bumper, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O SPORT SUSPENSION, W/ O TT RS

$31.60 $18.01
5 8J0-511-353-G 8J0-511-353-G / Bumper

Bumper, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O SPORT SUSPENSION, W/ O TT RS

$31.60 $18.01
6 8J0-511-115-AK 8J0-511-115-AK / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 3 GREEN MARKS, W/ 2 BROWN & 3 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-AK 8J0-511-115-AK / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 3 GREEN MARKS, W/ 2 BROWN & 3 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-AL 8J0-511-115-AL / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 1 BLUE MARK, W/ 2 BROWN & 1 BLUE MARK

$195.00 $133.38
6 8J0-511-115-AL 8J0-511-115-AL / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 1 BLUE MARK, W/ 2 BROWN & 1 BLUE MARK

$195.00 $133.38
6 8J0-511-115-AM 8J0-511-115-AM / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 2 BLUE MARKS, W/ 2 BROWN & 2 BLUE MARKS

$196.67 $134.52
6 8J0-511-115-AM 8J0-511-115-AM / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 2 BLUE MARKS, W/ 2 BROWN & 2 BLUE MARKS

$196.67 $134.52
6 8J0-511-115-AP 8J0-511-115-AP / Coil Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET MARKS

$200.00 $136.80
6 8J0-511-115-AP 8J0-511-115-AP / Coil Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET MARKS

$200.00 $136.80
6 8J0-511-115-AQ 8J0-511-115-AQ / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET & 1 YELLOW MARK, W/ 3 VIOLET & 1 YELLOW MARK

$200.00 $136.80
6 8J0-511-115-AQ 8J0-511-115-AQ / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET & 1 YELLOW MARK, W/ 3 VIOLET & 1 YELLOW MARK

$200.00 $136.80
6 8J0-511-115-AR 8J0-511-115-AR / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET & 2 YELLOW MARKS, W/ 3 VIOLET & 2 YELLOW MARKS

$200.00 $136.80
6 8J0-511-115-AR 8J0-511-115-AR / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET & 2 YELLOW MARKS, W/ 3 VIOLET & 2 YELLOW MARKS

$200.00 $136.80
6 8J0-511-115-AT 8J0-511-115-AT / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET & 2 ORANGE MARKS, W/ 3 VIOLET & 2 ORANGE MARKS

$200.00 $136.80
6 8J0-511-115-AT 8J0-511-115-AT / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET & 2 ORANGE MARKS, W/ 3 VIOLET & 2 ORANGE MARKS

$200.00 $136.80
6 8J0-511-115-BA 8J0-511-115-BA / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET & 1 GREEN MARK, W/ 3 VIOLET & 1 GREEN MARK

$200.00 $136.80
6 8J0-511-115-BA 8J0-511-115-BA / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET & 1 GREEN MARK, W/ 3 VIOLET & 1 GREEN MARK

$200.00 $136.80
6 8J0-511-115-BB 8J0-511-115-BB / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET & 2 GREEN MARKS, W/ 3 VIOLET & 2 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-BB 8J0-511-115-BB / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET & 2 GREEN MARKS, W/ 3 VIOLET & 2 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-BD 8J0-511-115-BD / Coil Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET & 2 BROWN MARKS, W/ 3 VIOLET & 2 BROWN MARKS

$195.00 $133.38
6 8J0-511-115-BD 8J0-511-115-BD / Coil Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET & 2 BROWN MARKS, W/ 3 VIOLET & 2 BROWN MARKS

$195.00 $133.38
6 8J0-511-115-BE 8J0-511-115-BE / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 YELLOW MARK, W/ 3 VIOLET, 1 GRAY & 1 YELLOW MARK

$201.67 $137.94
6 8J0-511-115-BE 8J0-511-115-BE / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 YELLOW MARK, W/ 3 VIOLET, 1 GRAY & 1 YELLOW MARK

$201.67 $137.94
6 8J0-511-115-BF 8J0-511-115-BF / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 ORANGE MARK, W/ 3 VIOLET, 1 GRAY & 1 ORANGE MARK

$200.00 $136.80
6 8J0-511-115-BF 8J0-511-115-BF / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 ORANGE MARK, W/ 3 VIOLET, 1 GRAY & 1 ORANGE MARK

$200.00 $136.80
6 8J0-511-115-BG 8J0-511-115-BG / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 GREEN MARK, W/ 3 VIOLET, 1 GRAY & 1 GREEN MARK

$196.67 $134.52
6 8J0-511-115-BG 8J0-511-115-BG / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 GREEN MARK, W/ 3 VIOLET, 1 GRAY & 1 GREEN MARK

$196.67 $134.52
6 8J0-511-115-BH 8J0-511-115-BH / Coil Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 BROWN MARK, W/ 3 VIOLET, 1 GRAY & 1 BROWN MARK

$200.00 $136.80
6 8J0-511-115-BH 8J0-511-115-BH / Coil Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 BROWN MARK, W/ 3 VIOLET, 1 GRAY & 1 BROWN MARK

$200.00 $136.80
6 8J0-511-115-BJ 8J0-511-115-BJ / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 WHITE MARK, W/ 3 VIOLET, 1 GRAY & 1 WHITE MARK

$200.00 $136.80
6 8J0-511-115-BJ 8J0-511-115-BJ / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 GRAY & 1 WHITE MARK, W/ 3 VIOLET, 1 GRAY & 1 WHITE MARK

$200.00 $136.80
6 8J0-511-115-BP 8J0-511-115-BP / Coil Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 BLUE & 1 GRAY MARK, W/ 3 VIOLET, 1 BLUE & 1 GRAY MARK

$200.00 $136.80
6 8J0-511-115-BP 8J0-511-115-BP / Coil Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 BLUE & 1 GRAY MARK, W/ 3 VIOLET, 1 BLUE & 1 GRAY MARK

$200.00 $136.80
6 8J0-511-115-BQ 8J0-511-115-BQ / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 3 BLUE MARKS, W/ 2 BROWN & 3 BLUE MARKS

$200.00 $136.80
6 8J0-511-115-BQ 8J0-511-115-BQ / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 3 BLUE MARKS, W/ 2 BROWN & 3 BLUE MARKS

$200.00 $136.80
6 8J0-511-115-BR 8J0-511-115-BR / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 1 RED MARK, W/ 2 BROWN & 1 RED MARK

$200.00 $136.80
6 8J0-511-115-BR 8J0-511-115-BR / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 1 RED MARK, W/ 2 BROWN & 1 RED MARK

$200.00 $136.80
6 8J0-511-115-BS 8J0-511-115-BS / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 2 RED MARK, W/ 2 BROWN & 2 RED MARK

$200.00 $136.80
6 8J0-511-115-BS 8J0-511-115-BS / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 2 RED MARK, W/ 2 BROWN & 2 RED MARK

$200.00 $136.80
6 8J0-511-115-BT 8J0-511-115-BT / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET & 1 BROWN MARK, W/ 3 VIOLET & 1 BROWN MARK

$200.00 $136.80
6 8J0-511-115-BT 8J0-511-115-BT / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET & 1 BROWN MARK, W/ 3 VIOLET & 1 BROWN MARK

$200.00 $136.80
6 8J0-511-115-C 8J0-511-115-C / Coil Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 1 ORANGE MARK, W/ 2 BROWN & 1 ORANGE MARK

$200.00 $136.80
6 8J0-511-115-C 8J0-511-115-C / Coil Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 1 ORANGE MARK, W/ 2 BROWN & 1 ORANGE MARK

$200.00 $136.80
6 8J0-511-115-CA 8J0-511-115-CA / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 ORANGE & 1 YELLOW MARK, W/ 3 VIOLET, 1 ORANGE & 1 YELLOW MARK

$200.00 $136.80
6 8J0-511-115-CA 8J0-511-115-CA / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 ORANGE & 1 YELLOW MARK, W/ 3 VIOLET, 1 ORANGE & 1 YELLOW MARK

$200.00 $136.80
6 8J0-511-115-CB 8J0-511-115-CB / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 GREEN & 1 YELLOW MARK, W/ 3 VIOLET, 1 GREEN & 1 YELLOW MARK

$200.00 $136.80
6 8J0-511-115-CB 8J0-511-115-CB / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 GREEN & 1 YELLOW MARK, W/ 3 VIOLET, 1 GREEN & 1 YELLOW MARK

$200.00 $136.80
6 8J0-511-115-CC 8J0-511-115-CC / Spring

Spring, LEFT

W/ AWD, W/ 3 VIOLET, 1 GREEN & 1 BLUE MARK, W/ 3 VIOLET, 1 GREEN & 1 BLUE MARK

$200.00 $136.80
6 8J0-511-115-CC 8J0-511-115-CC / Spring

Spring, RIGHT

W/ AWD, W/ 3 VIOLET, 1 GREEN & 1 BLUE MARK, W/ 3 VIOLET, 1 GREEN & 1 BLUE MARK

$200.00 $136.80
6 8J0-511-115-D 8J0-511-115-D / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 2 ORANGE MARKS, W/ 2 BROWN & 2 ORANGE MARKS

$200.00 $136.80
6 8J0-511-115-D 8J0-511-115-D / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 2 ORANGE MARKS, W/ 2 BROWN & 2 ORANGE MARKS

$200.00 $136.80
6 8J0-511-115-E 8J0-511-115-E / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 3 ORANGE MARKS, W/ 2 BROWN & 3 ORANGE MARKS

$200.00 $136.80
6 8J0-511-115-E 8J0-511-115-E / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 3 ORANGE MARKS, W/ 2 BROWN & 3 ORANGE MARKS

$200.00 $136.80
6 8J0-511-115-F 8J0-511-115-F / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 1 GREEN MARK, W/ 2 BROWN & 1 GREEN MARK

$196.67 $134.52
6 8J0-511-115-F 8J0-511-115-F / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 1 GREEN MARK, W/ 2 BROWN & 1 GREEN MARK

$196.67 $134.52
6 8J0-511-115-G 8J0-511-115-G / Spring

Spring, LEFT

W/ AWD, W/ 2 BROWN & 2 GREEN MARKS, W/ 2 BROWN & 2 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-G 8J0-511-115-G / Spring

Spring, RIGHT

W/ AWD, W/ 2 BROWN & 2 GREEN MARKS, W/ 2 BROWN & 2 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-L 8J0-511-115-L / Spring

Spring, LEFT

W/ AWD, W/ 3 BROWN & 2 ORANGE MARKS, W/ 3 BROWN & 2 ORANGE MARKS

$196.67 $134.52
6 8J0-511-115-L 8J0-511-115-L / Spring

Spring, RIGHT

W/ AWD, W/ 3 BROWN & 2 ORANGE MARKS, W/ 3 BROWN & 2 ORANGE MARKS

$196.67 $134.52
6 8J0-511-115-M 8J0-511-115-M / Spring

Spring, LEFT

W/ AWD, W/ 3 BROWN & 1 GREEN MARK, W/ 3 BROWN & 1 GREEN MARK

$200.00 $136.80
6 8J0-511-115-M 8J0-511-115-M / Spring

Spring, RIGHT

W/ AWD, W/ 3 BROWN & 1 GREEN MARK, W/ 3 BROWN & 1 GREEN MARK

$200.00 $136.80
6 8J0-511-115-N 8J0-511-115-N / Spring

Spring, LEFT

W/ AWD, W/ 3 BROWN & 2 GREEN MARKS, W/ 3 BROWN & 2 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-N 8J0-511-115-N / Spring

Spring, RIGHT

W/ AWD, W/ 3 BROWN & 2 GREEN MARKS, W/ 3 BROWN & 2 GREEN MARKS

$200.00 $136.80
6 8J0-511-115-P 8J0-511-115-P / Spring

Spring, LEFT

W/ AWD, W/ 4 BROWN MARKS

$200.00 $136.80
6 8J0-511-115-P 8J0-511-115-P / Spring

Spring, RIGHT

W/ AWD, W/ 4 BROWN MARKS

$200.00 $136.80
7 1K0-512-149-B 1K0-512-149-B / Upper Seat

Upper Seat, LEFT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$17.20 $9.80
7 1K0-512-149-B 1K0-512-149-B / Upper Seat

Upper Seat, RIGHT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$17.20 $9.80
7 8J0-512-149 8J0-512-149 / Upper Seat

Upper Seat, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$19.48 $11.10
7 8J0-512-149 8J0-512-149 / Upper Seat

Upper Seat, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$19.48 $11.10
8 3C0-513-353-C 3C0-513-353-C / Shock Mount

Upper Mount, LEFT

W/ AWD

$73.33 $50.16
8 3C0-513-353-C 3C0-513-353-C / Shock Mount

Upper Mount, RIGHT

W/ AWD

$73.33 $50.16
9 N-906-484-02 N-906-484-02 / Mount Bracket Lower Bolt

Upper Mount Bolt, LEFT

W/ AWD

$3.24 $1.85
9 N-906-484-02 N-906-484-02 / Mount Bracket Lower Bolt

Upper Mount Bolt, RIGHT

W/ AWD

$3.24 $1.85
10 8J0-512-041 8J0-512-041 / Top Nut

Top Nut, LEFT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$4.90 $2.79
10 8J0-512-041 8J0-512-041 / Top Nut

Top Nut, RIGHT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$4.90 $2.79
10 N-103-041-02 N-103-041-02 / Top Nut

Top Nut, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$1.40 $0.80
10 N-103-041-02 N-103-041-02 / Top Nut

Top Nut, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$1.40 $0.80
11 1J0-512-135-A 1J0-512-135-A / Cap

Cap, LEFT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$2.54 $1.45
11 1J0-512-135-A 1J0-512-135-A / Cap

Cap, RIGHT

W/ AWD, W/ O RIDE CONTROL SUSPENSION, W/ O RIDE CONTROL SUSPENSION

$2.54 $1.45
11 8J0-512-133 8J0-512-133 / Cap

Cap, LEFT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$55.00 $37.62
11 8J0-512-133 8J0-512-133 / Cap

Cap, RIGHT

W/ AWD, W/ RIDE CONTROL SUSPENSION, W/ RIDE CONTROL SUSPENSION

$55.00 $37.62
2This part contains hazardous materials. Extra shipping costs apply.
