Rear Suspension/Rear Suspension for 2012 Audi TT Quattro

Select Rear Suspension Part

2012 Audi TT Quattro

Change vehicle

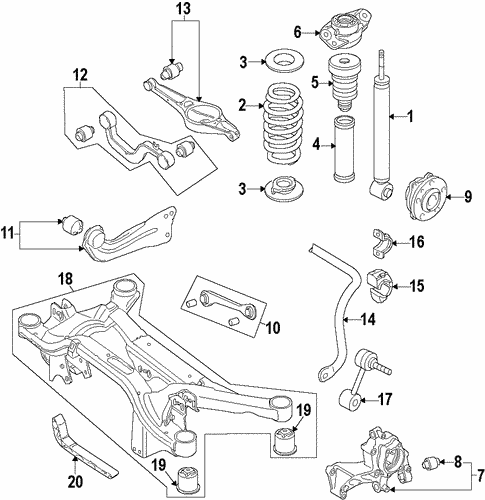

Rear Suspension/Rear Suspension for 2012 Audi TT Quattro #1
No. Part # Part # / Description List Price Price
1 3C0-505-433-G 3C0-505-433-G / Knuckle

Knuckle, LEFT

W/ AWD

$495.00 $338.58
1 3C0-505-434-G 3C0-505-434-G / Knuckle

Knuckle, RIGHT

W/ AWD

$495.00 $338.58
2 1K0-505-553-A 1K0-505-553-A / Knuckle Bushing

Knuckle Insulator, LEFT

W/ AWD

$26.00 $14.82
2 1K0-505-553-A 1K0-505-553-A / Knuckle Bushing

Knuckle Insulator, RIGHT

W/ AWD

$26.00 $14.82
3 1K0-505-223-K 1K0-505-223-K / Trailing Arm

Trailing Arm, LEFT

W/ AWD

$258.33 $176.70
3 1K0-505-224-K 1K0-505-224-K / Trailing Arm

Trailing Arm, RIGHT

W/ AWD

$258.33 $176.70
4 1K0-505-541-D 1K0-505-541-D / Trailing Arm Bushing

Trailing Arm Insulator, LEFT

W/ AWD

$16.04 $9.14
4 1K0-505-541-D 1K0-505-541-D / Trailing Arm Bushing

Trailing Arm Insulator, RIGHT

W/ AWD

$16.04 $9.14
5 N-101-708-04 N-101-708-04 / Trailing Arm Mount Bolt

Trailing Arm Mount Bolt, LEFT

W/ AWD

$4.36 $2.49
5 N-101-708-04 N-101-708-04 / Trailing Arm Mount Bolt

Trailing Arm Mount Bolt, RIGHT

W/ AWD

$4.36 $2.49
6 N-106-284-01 N-106-284-01 / Trailing Arm Mount Bolt

Trailing Arm Bolt, LEFT

W/ AWD

$3.06 $1.74
6 N-106-284-01 N-106-284-01 / Trailing Arm Mount Bolt

Trailing Arm Bolt, RIGHT

W/ AWD

$3.06 $1.74
7 1K0-505-129-L 1K0-505-129-L / Bracket

Mount Bracket, LEFT

W/ AWD

$80.00 $54.72
7 1K0-505-130-L 1K0-505-130-L / Bracket

Mount Bracket, RIGHT

W/ AWD

$80.00 $54.72
8 N-906-484-02 N-906-484-02 / Mount Bracket Lower Bolt

Mount Bracket Bolt, LEFT

W/ AWD

$3.24 $1.85
8 N-906-484-02 N-906-484-02 / Mount Bracket Lower Bolt

Mount Bracket Bolt, RIGHT

W/ AWD

$3.24 $1.85
9 1K0-501-475 1K0-501-475 / Cap

Mount Bracket Cap, LEFT

W/ AWD

$6.20 $3.53
9 1K0-501-476 1K0-501-476 / Cap

Mount Bracket Cap, RIGHT

W/ AWD

$6.20 $3.53
10 1K0-505-323-N 1K0-505-323-N / Upper Control Arm

Upper Control Arm, LEFT

W/ AWD, TO 5/ 25/ 12

$247.10 $169.02
10 1K0-505-323-N 1K0-505-323-N / Upper Control Arm

Upper Control Arm, RIGHT

W/ AWD, TO 5/ 25/ 12

$247.10 $169.02
10 5Q0-505-323-C 5Q0-505-323-C / Upper Control Arm

Upper Control Arm, LEFT

W/ AWD, FROM 5/ 28/ 12

$270.00 $184.68
10 5Q0-505-323-C 5Q0-505-323-C / Upper Control Arm

Upper Control Arm, RIGHT

W/ AWD, FROM 5/ 28/ 12

$270.00 $184.68
12 N-910-767-01 N-910-767-01 / Upper Control Arm Bolt

Upper Control Arm Bolt, LEFT

W/ AWD

$8.72 $4.97
12 N-910-767-01 N-910-767-01 / Upper Control Arm Bolt

Upper Control Arm Bolt, RIGHT

W/ AWD

$8.72 $4.97
13 WHT-000-724 WHT-000-724 / Upper Control Arm Lock Washer

Upper Control Arm Spacer, LEFT

W/ AWD

$4.78 $2.72
13 WHT-000-724 WHT-000-724 / Upper Control Arm Lock Washer

Upper Control Arm Spacer, RIGHT

W/ AWD

$4.78 $2.72
14 1K0-505-193 1K0-505-193 / Upper Control Arm Washer

Upper Control Arm Washer, LEFT

W/ AWD

$5.06 $2.88
14 1K0-505-193 1K0-505-193 / Upper Control Arm Washer

Upper Control Arm Washer, RIGHT

W/ AWD

$5.06 $2.88
15 N-104-018-01 N-104-018-01 / Knuckle Nut

Upper Control Arm Nut, LEFT

W/ AWD

$3.74 $2.13
15 N-104-018-01 N-104-018-01 / Knuckle Nut

Upper Control Arm Nut, RIGHT

W/ AWD

$3.74 $2.13
16 WHT-000-227 WHT-000-227 / Upper Control Arm Adjust Bolt

Upper Control Arm Adjust Bolt, LEFT

W/ AWD

$11.92 $6.79
16 WHT-000-227 WHT-000-227 / Upper Control Arm Adjust Bolt

Upper Control Arm Adjust Bolt, RIGHT

W/ AWD

$11.92 $6.79
17 WHT-000-232 WHT-000-232 / Upper Control Arm Adjust Cam

Upper Control Arm Adjust Cam, LEFT

W/ AWD

$2.36 $1.35
17 WHT-000-232 WHT-000-232 / Upper Control Arm Adjust Cam

Upper Control Arm Adjust Cam, RIGHT

W/ AWD

$2.36 $1.35
18 N-101-064-02 N-101-064-02 / Top Nut

Upper Control Arm Lock Nut, LEFT

W/ AWD

$1.25 $0.86
18 N-101-064-02 N-101-064-02 / Top Nut

Upper Control Arm Lock Nut, RIGHT

W/ AWD

$1.25 $0.86
19 1K0-505-311-AB 1K0-505-311-AB / Lower Control Arm

Lower Control Arm, LEFT

W/ AWD

$286.67 $196.08
19 1K0-505-311-AB 1K0-505-311-AB / Lower Control Arm

Lower Control Arm, RIGHT

W/ AWD

$286.67 $196.08
21 N-106-286-01 N-106-286-01 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

W/ AWD

$4.08 $2.33
21 N-106-286-01 N-106-286-01 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

W/ AWD

$4.08 $2.33
22 N-101-064-02 N-101-064-02 / Top Nut

Lower Control Arm Lock Nut, LEFT

W/ AWD

$1.25 $0.86
22 N-101-064-02 N-101-064-02 / Top Nut

Lower Control Arm Lock Nut, RIGHT

W/ AWD

$1.25 $0.86
23 WHT-000-228 WHT-000-228 / Lower Control Arm Adjust Bolt

Lower Control Arm Adjust Bolt, LEFT

W/ AWD

$11.92 $6.79
23 WHT-000-228 WHT-000-228 / Lower Control Arm Adjust Bolt

Lower Control Arm Adjust Bolt, RIGHT

W/ AWD

$11.92 $6.79
24 WHT-000-232 WHT-000-232 / Upper Control Arm Adjust Cam

Lower Control Arm Adjust Cam, LEFT

W/ AWD

$2.36 $1.35
24 WHT-000-232 WHT-000-232 / Upper Control Arm Adjust Cam

Lower Control Arm Adjust Cam, RIGHT

W/ AWD

$2.36 $1.35
25 N-105-977-01 N-105-977-01 / Door Shell Cap

Lower Control Arm Lock Nut, LEFT

W/ AWD

$1.40 $0.80
25 N-105-977-01 N-105-977-01 / Door Shell Cap

Lower Control Arm Lock Nut, RIGHT

W/ AWD

$1.40 $0.80
26 1K0-501-529-H 1K0-501-529-H / Lateral Arm

Lateral Arm, LEFT

W/ AWD

$98.33 $67.26
26 1K0-501-529-H 1K0-501-529-H / Lateral Arm

Lateral Arm, RIGHT

W/ AWD

$98.33 $67.26
28 N-910-674-01 N-910-674-01 / Lateral Arm Mount Bolt

Lateral Arm Mount Bolt, LEFT

W/ AWD, W/ O TT RS

$7.10 $4.05
28 N-910-674-01 N-910-674-01 / Lateral Arm Mount Bolt

Lateral Arm Mount Bolt, RIGHT

W/ AWD, W/ O TT RS

$7.10 $4.05
29 N-909-167-01 N-909-167-01 / Lateral Arm Lock Nut

Lateral Arm Lock Nut, LEFT

W/ AWD, W/ O TT RS

$5.06 $2.88
29 N-909-167-01 N-909-167-01 / Lateral Arm Lock Nut

Lateral Arm Lock Nut, RIGHT

W/ AWD, W/ O TT RS

$5.06 $2.88
30 N-910-767-01 N-910-767-01 / Upper Control Arm Bolt

Lateral Arm Bolt, LEFT

W/ AWD, W/ O TT RS

$8.72 $4.97
30 N-910-767-01 N-910-767-01 / Upper Control Arm Bolt

Lateral Arm Bolt, RIGHT

W/ AWD, W/ O TT RS

$8.72 $4.97
31 1K0-505-193 1K0-505-193 / Upper Control Arm Washer

Lateral Arm Spacer, LEFT

W/ AWD

$5.06 $2.88
31 1K0-505-193 1K0-505-193 / Upper Control Arm Washer

Lateral Arm Spacer, RIGHT

W/ AWD

$5.06 $2.88
32 WHT-000-724 WHT-000-724 / Upper Control Arm Lock Washer

Lateral Arm Washer, LEFT

W/ AWD

$4.78 $2.72
32 WHT-000-724 WHT-000-724 / Upper Control Arm Lock Washer

Lateral Arm Washer, RIGHT

W/ AWD

$4.78 $2.72
33 N-104-018-01 N-104-018-01 / Knuckle Nut

Lateral Arm Nut, LEFT

W/ AWD

$3.74 $2.13
33 N-104-018-01 N-104-018-01 / Knuckle Nut

Lateral Arm Nut, RIGHT

W/ AWD

$3.74 $2.13
34 1K0-511-533-D 1K0-511-533-D / Stone Guard

Stone Guard, LEFT

W/ AWD

$73.33 $50.16
34 1K0-511-534-D 1K0-511-534-D / Stone Guard

Stone Guard, RIGHT

W/ AWD

$73.33 $50.16
35 N-090-226-5 N-090-226-5 / Stone Guard Bolt

Stone Guard Bolt, LEFT

W/ AWD

$1.40 $0.80
35 N-090-226-5 N-090-226-5 / Stone Guard Bolt

Stone Guard Bolt, RIGHT

W/ AWD

$1.40 $0.80
36 N-909-203-01 N-909-203-01 / Stone Guard Nut

Stone Guard Nut, LEFT

W/ AWD

$2.58 $1.47
36 N-909-203-01 N-909-203-01 / Stone Guard Nut

Stone Guard Nut, RIGHT

W/ AWD

$2.58 $1.47
37 8E0-825-267 8E0-825-267 / Side Shield Rivet

Stone Guard Rivet, LEFT

W/ AWD

$1.44 $0.82
37 8E0-825-267 8E0-825-267 / Side Shield Rivet

Stone Guard Rivet, RIGHT

W/ AWD

$1.44 $0.82

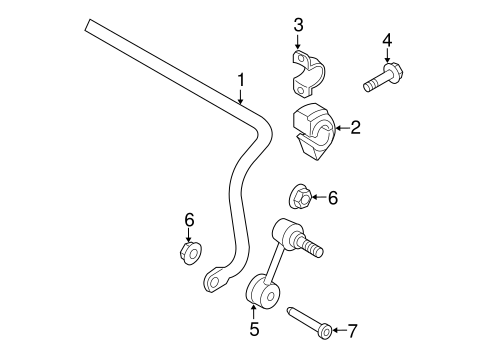

No. Part # Part # / Description List Price Price
2 1K0-511-327-AP 1K0-511-327-AP / Stabilizer Bar Bushing

Stabilizer Bar Bushing, LEFT

W/ AWD

$15.38 $8.77
2 1K0-511-327-AP 1K0-511-327-AP / Stabilizer Bar Bushing

Stabilizer Bar Bushing, RIGHT

W/ AWD

$15.38 $8.77
3 1K0-511-439-E 1K0-511-439-E / Bracket

Stabilizer Bar Bracket, LEFT

W/ AWD

$28.60 $16.30
3 1K0-511-439-E 1K0-511-439-E / Bracket

Stabilizer Bar Bracket, RIGHT

W/ AWD

$28.60 $16.30
4 N-106-447-01 N-106-447-01 / Stabilizer Bar Bolt

Stabilizer Bar Bolt, LEFT

W/ AWD, W/ O TT RS

$2.08 $1.19
4 N-106-447-01 N-106-447-01 / Stabilizer Bar Bolt

Stabilizer Bar Bolt, RIGHT

W/ AWD, W/ O TT RS

$2.08 $1.19
5 1K0-505-465-AA 1K0-505-465-AA / Stabilizer Link

Stabilizer Link, LEFT

W/ AWD

$58.33 $39.90
5 1K0-505-465-AA 1K0-505-465-AA / Stabilizer Link

Stabilizer Link, RIGHT

W/ AWD

$58.33 $39.90
6 N-102-861-10 N-102-861-10 / Stabilizer Link Lock Nut

Stabilizer Link Lock Nut, LEFT

W/ AWD, W/ O TT RS

$1.34 $0.76
6 N-102-861-10 N-102-861-10 / Stabilizer Link Lock Nut

Stabilizer Link Lock Nut, RIGHT

W/ AWD, W/ O TT RS

$1.34 $0.76
7 WHT-000-226 WHT-000-226 / Stabilizer Link Mount Bolt

Stabilizer Link Mount Bolt, LEFT

W/ AWD

$2.76 $1.57
7 WHT-000-226 WHT-000-226 / Stabilizer Link Mount Bolt

Stabilizer Link Mount Bolt, RIGHT

W/ AWD

$2.76 $1.57
Rear Suspension/Rear Suspension for 2012 Audi TT Quattro #3
No. Part # Part # / Description List Price Price
N/A 1K0-941-273-M 1K0-941-273-M / Level Sensor

Height Sensor

TT; ALL; W/ O TTS MODEL

$243.33 $166.44
N/A 8J0-907-376-F 8J0-907-376-F / Control Module

TT

$853.85 $632.70
N/A 8J0-941-309-A 8J0-941-309-A / Height Sensor

TT; ALL; W/ TTS MODEL; LEFT

$238.33 $163.02
N/A 8J0-941-310-A 8J0-941-310-A / Height Sensor

TT; ALL; W/ TTS MODEL; RIGHT

$238.33 $163.02
1 8J0-513-025-E 8J0-513-025-E / Shock Absorber 2

TT; W/ QUATTRO; W/ TTS MODEL; W/ SPORT SUSPENSION

$691.67 $473.10
1 8J0-513-025-F 8J0-513-025-F / Shock Absorber

TT; W/ QUATTRO; W/ TTS MODEL; W/ O SPORT SUSPENSION

$698.33 $477.66
1 8J0-513-029-F 8J0-513-029-F / Shock Absorber

TT; W/ QUATTRO; W/ O TTS MODEL; W/ SPORT SUSPENSION

$243.33 $166.44
1 8J0-513-029-S 8J0-513-029-S / Shock Absorber 2

TT; W/ QUATTRO; W/ O TTS MODEL; W/ O SPORT SUSPENSION

$243.33 $166.44
1 8J0513029T 8J0513029T / Shock Absorber

TT; W/ QUATTRO; W/ TTRS MODEL; W/ SPORT SUSPENSION

- -
2 8J0-511-115-AP 8J0-511-115-AP / Coil Spring

TT; W/ TTS MODEL; W/ O SPORT SUSPENSION

$200.00 $136.80
2 8J0-511-115-BD 8J0-511-115-BD / Coil Spring

TT; W/ TTS MODEL; W/ SPORT SUSPENSION

$195.00 $133.38
2 8J0-511-115-BH 8J0-511-115-BH / Coil Spring

TT; W/ TTRS MODEL; W/ SPORT SUSPENSION

$200.00 $136.80
2 8J0-511-115-BP 8J0-511-115-BP / Coil Spring

TT; W/ TTRS MODEL; W/ O SPORT SUSPENSION

$200.00 $136.80
3 1K0-512-149-B 1K0-512-149-B / Upper Seat

Spring Seat

TT; UPPER

$17.20 $9.80
3 1K0-512-297-D 1K0-512-297-D / Lower Seat

Spring Seat

TT; LOWER

$17.20 $9.80
4 3C0-513-425 3C0-513-425 / Dust Shield

TT

$10.78 $6.14
5 8J0-511-353 8J0-511-353 / Strut Bumper

Bumper

TT; 2.0L; W/ O SPORT SUSPENSION; W/ TTS MODEL

$32.40 $18.47
5 8J0-511-353-A 8J0-511-353-A / Bumper

TT; 2.0L; W/ SPORT SUSPENSION; W/ TTS MODEL

$32.40 $18.47
5 8J0-511-353-F 8J0-511-353-F / Bumper

TT; 2.0L; W/ SPORT SUSPENSION; W/ O TTS MODEL

$32.40 $18.47
5 8J0-511-353-G 8J0-511-353-G / Bumper

TT; 2.0L; W/ O SPORT SUSPENSION; W/ O TTS MODEL

$31.60 $18.01
6 3C0-513-353-C 3C0-513-353-C / Shock Mount

TT

$73.33 $50.16
7 3C0-505-433-G 3C0-505-433-G / Knuckle

TT; 2.0L; LEFT

$495.00 $338.58
7 3C0-505-434-G 3C0-505-434-G / Knuckle

TT; 2.0L; RIGHT

$495.00 $338.58
8 1K0-505-553-A 1K0-505-553-A / Knuckle Bushing

Bushings

TT

$26.00 $14.82
9 5K0-498-621 5K0-498-621 / Hub & Bearing

Hub & Bearing Assembly

TT; W/ QUATTRO

$280.00 $191.52
10 1K0-501-529-H 1K0-501-529-H / Lateral Arm

Tie Rod

TT

$98.33 $67.26
11 1K0-505-223-K 1K0-505-223-K / Trailing Arm

TT; LEFT

$258.33 $176.70
11 1K0-505-224-K 1K0-505-224-K / Trailing Arm

TT; RIGHT

$258.33 $176.70
12 1K0-505-323-N 1K0-505-323-N / Upper Control Arm

TT

$247.10 $169.02
13 1K0-505-311-AB 1K0-505-311-AB / Lower Control Arm

TT

$286.67 $196.08
14 1K0-511-409-BD 1K0-511-409-BD / Stabilizer Bar

TT; W/ QUATTRO

$148.33 $101.46
14 8J0-511-409-E 8J0-511-409-E / Stabilizer Bar

TTRS

$253.33 $173.28
15 1K0-511-327-AP 1K0-511-327-AP / Stabilizer Bar Bushing

Bushings

TT

$15.38 $8.77
15 1K0-511-327-AQ 1K0-511-327-AQ / Stabilizer Bar Bushing

Bushings

TTRS

$15.38 $8.77
16 1K0-511-439-E 1K0-511-439-E / Bracket

TT

$28.60 $16.30
17 1K0-505-465-AA 1K0-505-465-AA / Stabilizer Link

Link

TT

$58.33 $39.90
18 5N0-505-235-AG 5N0-505-235-AG / Cross-Member

TT; COUPE

$823.08 $609.90
18 8J7-505-235-F 8J7-505-235-F / Cross-Member

TT; CONVERTIBLE

$1,267.69 $939.36
19 1K0-505-145-J 1K0-505-145-J / Suspension Cross-Member Front Bushing

Cross-member Bushing

TT; FRONT; COUPE

$61.67 $42.18
19 1K0-505-145-K 1K0-505-145-K / Suspension Cross-Member Rear Bushing

Cross-member Bushing

TT; REAR; COUPE

$61.67 $42.18
19 8J7-505-269-B 8J7-505-269-B / Cross-Member Bushing

TT; FRONT; CONVERTIBLE

- -
19 8J7-505-269-C 8J7-505-269-C / Cross-Member Bushing

TT; REAR; CONVERTIBLE

- -
2This part contains hazardous materials. Extra shipping costs apply.
