HVAC/Blower Motor & Fan for 2012 Audi TT Quattro

Select Blower Motor & Fan Part

2012 Audi TT Quattro

Change vehicle

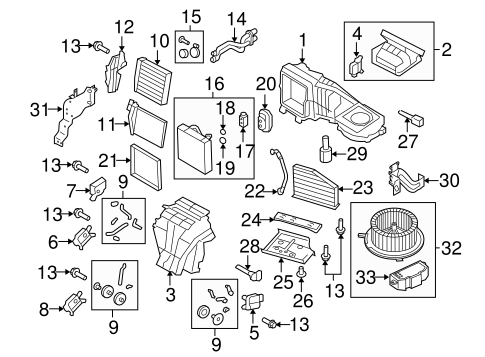

No. Part # Part # / Description List Price Price
1 1K1-820-007-B 1K1-820-007-B / AC & Heater Case

$235.00 $160.74
2 1K1-820-304 1K1-820-304 / Intake Duct

$433.33 $296.40
3 1K1-820-353-B 1K1-820-353-B / Distribution Box

$586.67 $401.28
4 1K1-907-511-G 1K1-907-511-G / Adjust Motor

Motor

AIR RECIRCULATING

$186.67 $127.68
5 1K0-907-511-B 1K0-907-511-B / Adjust Motor

Motor, RIGHT

TEMPERATURE

- -
6 1K1-907-511-C 1K1-907-511-C / Adjust Motor

Motor, LEFT

TEMPERATURE

$116.67 $79.80
7 1K1-907-511-E 1K1-907-511-E / Adjust Motor

Motor

DEFROSTER

- -
8 1K0-907-511 1K0-907-511 / Adjust Motor

Motor

POSITION

$116.67 $79.80
9 1K1-898-001 1K1-898-001 / Lever Assembly

$51.67 $35.34
10 1K0-819-031-D 1K0-819-031-D / Heater Core

$225.00 $153.90
11 1K0-963-235-H 1K0-963-235-H / Auxiliary Heater

FROM VIN 8J8027712

$341.67 $233.70
12 1K1-819-349-F 1K1-819-349-F / Side Cover

$34.60 $19.72
13 N-104-241-02 N-104-241-02 / Side Cover Screw

$0.32 $0.18
14 1K1-819-857-C 1K1-819-857-C / Pipe Assembly

Tube

$126.67 $86.64
15 8E0-898-380 8E0-898-380 / Pipe Assembly Gasket Set

Tube Gasket Set

$23.40 $13.34
16 1K1-820-103-E 1K1-820-103-E / Evaporator Core

Evaporator Assembly

$460.00 $314.64
17 1K0-820-679 1K0-820-679 / Expansion Valve

$85.00 $58.14
18 8E0-260-749-D 8E0-260-749-D / Expansion Valve Upper Seal

$1.78 $1.01
19 8E0-260-749 8E0-260-749 / Expansion Valve Lower Seal

$1.56 $0.89
20 1K0-820-080 1K0-820-080 / Expansion Valve Gasket

$10.48 $5.97
21 1K0-820-080 1K0-820-080 / Expansion Valve Gasket

Seal

$10.48 $5.97
22 1T2-260-113-C 1T2-260-113-C / Drain Hose

$12.78 $7.28
23 1K1-819-653-B 1K1-819-653-B / Cabin Air Filter

Filter

$19.98 $13.67
24 1K0-819-422-B 1K0-819-422-B / Filter Element Retainer

Filter Holder

$34.60 $19.72
25 8P1-819-593 8P1-819-593 / Lower Cover

Cover

$50.60 $28.84
26 WHT-000-155 WHT-000-155 / Filter Cover Wing-Nut

Cover Wing-Nut

$6.88 $3.92
28 3D0-907-543-A 3D0-907-543-A / Temp Sensor

#2

$56.00 $31.92
29 1K0-907-543-G 1K0-907-543-G / Temp Sensor

#3

$56.00 $31.92
30 1K1-819-453 1K1-819-453 / Bracket

$60.00 $41.04
31 1K1-819-473-H 1K1-819-473-H / Mount Bracket

$23.40 $13.34
32 1K1-820-015-Q 1K1-820-015-Q / Blower Motor

Fan & Motor

$431.67 $295.26
33 3C0-907-521-G 3C0-907-521-G / Control Module

Controller

$196.67 $134.52
23 1K1-819-669 1K1-819-669 / Air Filter

Cabin Air Filter

Odor & Pollen

$14.35 $9.82
